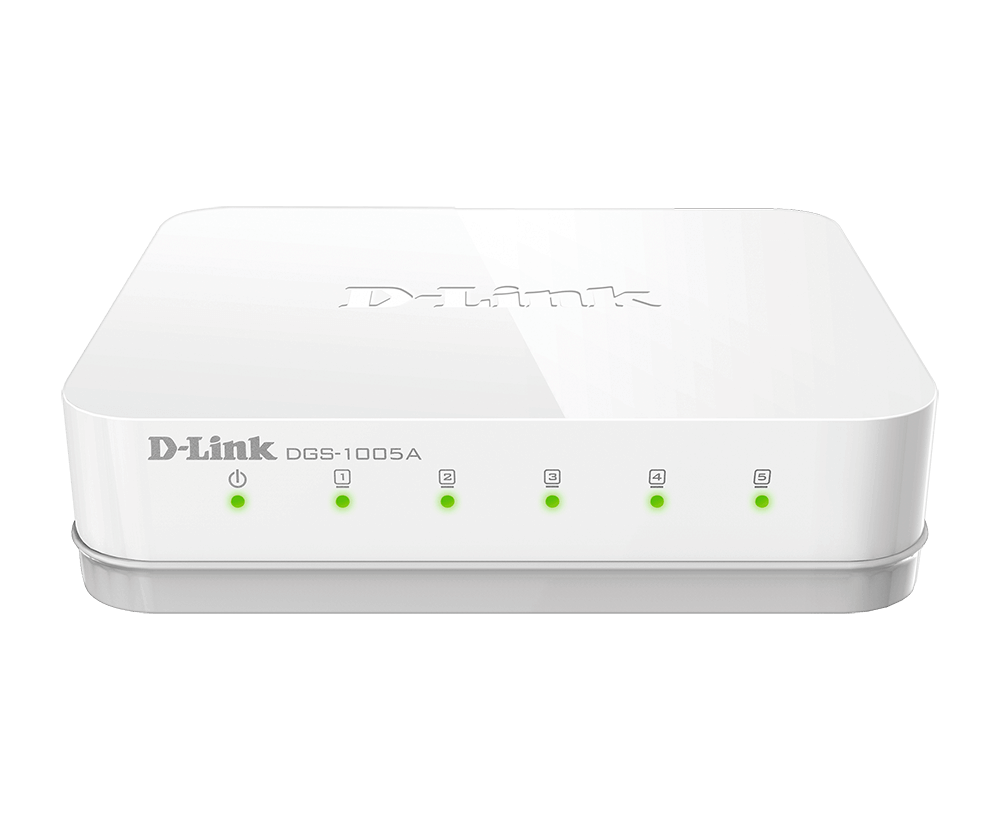

Switch D-Link 5 port Gigabit
5-Port Gigabit Unmanaged Desktop Switch
DGS-1005A
- 5 high-speed Gigabit ports
- Compact design for convenient placement
- Fanless design for silent operation
- Innovative D-Link Green energy saving features
Specification
|
Air Discharge
|
8kV |
|---|---|
|
Auto MDI/MDIX
|
Yes |
|
Comply with RoHS 6
|
Yes |
|
Control
|
802.3x Flow |
|
Dimensions
|
91 x 73 x 22mm |
|
Energy Efficiency Ethernet (EEE)
|
Yes |
|
FAN
|
Fanless |
|
Flash Memory Size
|
64KBytes |
|
Head-of-line (HOL) Blocking Prevention
|
Yes |
|
Interfaces
|
5 x 1000Base-T |
|
Jumbo Frame
|
9,720 Bytes |
|
MAC Address Table Size
|
4,000 |
|
Max. Packet Forwarding Rate
|
7.44 Mpps |
|
Maximum Heat Dissipation
|
13.299 BTU/h |
|
Maximum Power Consumption
|
3.90 W |
|
MTBF
|
1,152,221 hours |
|
Operating Altitude
|
2000m |
|
Operating Humidity
|
0% ~ 95% RH |
|
Operating Temperature
|
0 ~ 40 °C |
|
Packet Buffer Size
|
128KBytes |
|
Power Input
|
AC：100 ~ 240 V |
|
Power Saving By Cable Length
|
Yes |
|
Power Saving By Link Status
|
YES |
|
Standby Power Consumption
|
0.6 W |
|
Storage Humidity
|
0% ~ 95% RH |
|
Storage Temperature
|
– 10 ~ 70 °C |
|
Store & Forwarding Forwading
|
Yes |
|
Surge/Lightning Protection
|
AC Power Inet: 1kV
All Ethernet Ports: 1kV |
|
Switching Capacity
|
10 Gbps |
|
Weight
|
800 g |
